2x5x7 led RGB rectangle led

Shen Zhen Xin Ming Hong Electronic Co., Limited
Contact Now

2x5x7 led RGB rectangle led

  • 1
  • 2

Model Number : MH-257RGB800-A

Place of Origin : Guangdong, China

Brand Name : XMH

Packaging Details : 1000pcs/bag anti-staic bag +carton

Price : To be negotiated

MOQ : 1000pcs

Supply Ability : 100000pcs per day

Type : LED

Package Type : Through Hole

Supplier Type : Original manufacturer

Media Available : datasheet, Photo

Max. Forward Voltage : DC 3.4V

Max. Reverse Voltage : DC 5V

Max. Forward Current : 25MA

Max. Reverse Current : 5ua

Brand : LED

Diode Type : led diode

Voltage - Peak Reverse (Max) : DC5V

Operating Temperature : -40 TO 80

Current - Max : 30MA

Power - Max : 60mW

emitting color : blue

Package : DIP

Lens color : diffused

Package quantity : 1000pcs

Shape : Rectangular

Lens : diffused

Light color : RED+BLUE+GREEN

Contact Now

Product Description

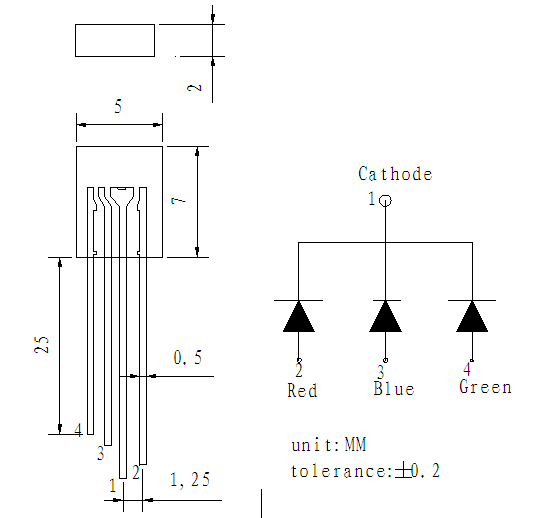

Outline dimension:

2x5x7 led RGB rectangle led

Feature:

2x5x7mm throught hole LED

Avaliable color:red yellow blue green RGB etc.

Low power consumption

Small view angle

Long lifespan

Super brightness

Package:1000pcs/bag

ROHS Compliant

Application:

Ideal for backlight and indicator

Various colors and lens types available

Electrical characteristics:(Ta=25°C)

Parameter Test condition Symbol Value Unit
Min Typ Max
Dominant wavelength If=20mA λd red 620 630 nm
green 520 530
blue 464 474
Forward voltage If=20mA Vf red 2.0 2.2 2.4 v
green 3.0 3.2 3.7
blue 3.0 3.2 3.7
Luminous intensity If=20mA Iv red 2000 3000 mcd
green 3000 4000
blue 2000 3000
Viewing angle at 50% lv If=10mA 2θ1/2 35 Deg
Resverse current Vr=5v Ir 10 mA

Related Products

Hot sales

2x5x7 led RGB rectangle led
1

Dual color red and green 3227 bi-color smd led for charger

2x5x7 led RGB rectangle led
2

Hot selling promotion 0805 smd led diode use for car LED display

Certifications
2x5x7 led RGB rectangle led

Packaging & Shipping

PACKAGE:

Standard export carton packing. 1000pcs/bag 30bags/box

DELIVERY TIME:

1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

2x5x7 led RGB rectangle led
Company Information

2x5x7 led RGB rectangle led

Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.

LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.

Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.

MH provides excellent sales service and strong technical supports to our customers.

FAQ

Why choose us?

1,Your inquiry for our products or prices will be replied in 24 hours

2,Protection of your sales area,ideas of design and all your private in formation.

3,We guarantee both quality and service regardless of your order qty.

4,Advanced equipment and goods materials:ASM machine good chip and expoxy resin.

5,If there is LED failure, how can you support?

A:Clients provide us with pictures of the failed products or the samples rejected, our engineers of after sale team will analyze the failure and find out the failure reasons. If the failure was caused by Xinminghong, we will compensate with qualified replacement as fast as we could!

6,Would you offer free samples?

A:Yes, We would offer free samples

7,What about the lead time?

A:It depends on the order quantity. Generally the lead time should be 5-7 working days. For samples, the delivery could be as fast as same day.
