F8 Blue Diffuser Diode Lamp Bead Straw Hat 8mm Thin Bracket Short Pin Indicator Light LED
Product Description of 8mm straw hat lamp led

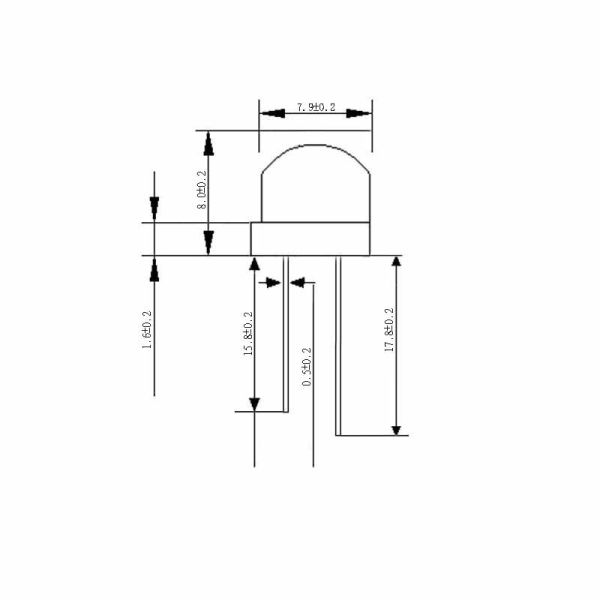

Outline dimension of 8mm straw hat lamp led:
Feature of 8mm straw hat lamp led:
1. High brightness
2.low light decay
3. Energy saving and environmental protection
4. Long life span
5. Low power consumption
6. High reliability
7. Easy to use
8. Easy installation
9. Strong anti-static ability
10. RoHS certification
Packaging :500 pcs/bag
ROHS Compliant
Application of 8mm straw hat lamp led:
Ideal for indicator and backlight
ndication of path
Exhibition hall decoration
Home Decor
Channel signal mark
Window prop
Logo of advertisement
High-end entertainment places such as decorative lighting.
Various colors and lens types available
Absolute Maximum rating of 8mm straw hat lamp led:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 90 | mW |
| Operationg temperature | Top | -30∼+80 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+100 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics of 8mm straw hat lamp led:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit |
| Min | Typ | Max |
| Dominant wavelength | If=20mA | λd | 465 | | 468 | nm |
| Forward voltage | If=20mA | Vf | 3.0 | | 3.4 | v |
| Luminous intensity | If=20mA | Iv | 200 | | 250 | mcd |
| Viewing angle at 50% lv | If=10mA | 2θ1/2 | | 30 | | Deg |
| Resverse current | Vr=5v | Ir | | | 5 | mA |
