Hot Selling Good Price Top View 5050 Chip 2-4LM Orange 600-605nm Smd Led High Brightness Long Life SMD LED Energy-Saving
Environmentally Friendly SMD LED
Product Description of 5050 smd led:
Absolute Maximum rating of 3224 smd led:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 60 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics of 5050 smd led:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit |
| Min | Typ | Max |
| Dominant wavelength | If=20mA | λd | 600 | - | 605 | nm |
| Forward voltage | If=20mA | Vf | 2.0 | - | 2.2 | v |
| Luminous intensity | If=20mA | Iv | 2 | - | 4 | lm |
| Viewing angle at 50% lv | If=10mA | 2θ1/2 | | 20 | | Deg |
| Resverse current | Vr=5v | Ir | | | 10 | mA |

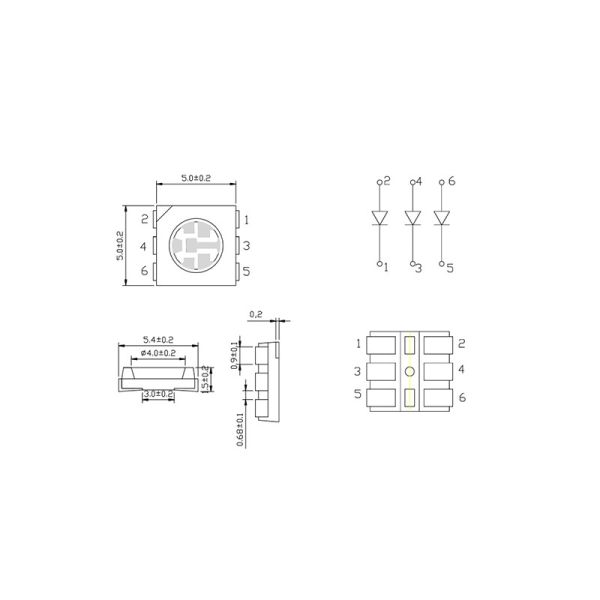

Outline dimension of 5050 smd led:
Feature of 5050 smd led:
1. Low voltage drive, environmental protection and energy saving
2. Small size, easy to install
3. High brightness, large scattering Angle, good consistency
Application of 5050 smd led:
1. Digital products
2. Home appliances
3. Consumer electronics
4. LCD backlight
5. Automotive electronics
6. Instrument
7. Industrial equipment
8. Display screen
9. Outdoor decor
10. Industrial lighting, etc
