Product Description of 3mm DIP LED

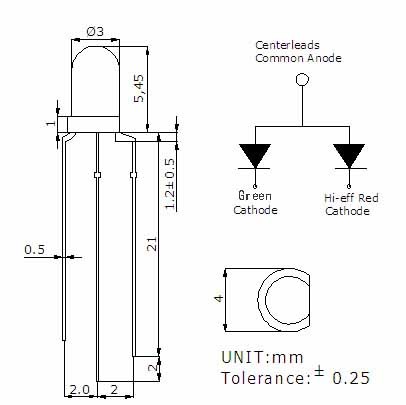

Outline dimension of 3mm DIP LED:
Feature of 3mm DIP LED:
The LED lamp contain two integral chips and is available as both bicolor and bipolar types.
The Brilliant Red and Brilliant blue light is emitted by diodes of AlGaInP and AlGaInP
Type of bipolar lamps are both White Clear and Color Clear while the bicolor are Water Clear
Two chips are matched for uniform light output,wide viewing angle
Long life-solid state relliablity
I.C. compatible/Low power consumption
small view angle
Long lifespan
Package:1000pcs/bag
ROHS Compliant
Application of 3mm DIP LED:
TV set
Monitor
Telephone
Computer
Absolute Maximum rating of 3mm DIP LED:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 90 | mW |
| Operationg temperature | Top | -20∼+60 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics of 3mm DIP LED:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit |
| Min | Typ | Max |
| Dominant wavelength | If=20mA | λd | R 620 | --- | 630 | nm |
| G 520 | | 530 |
| Forward voltage | If=20mA | Vf | 1.8 | 2.0 | 2.4 | v |
| 2.8 | 3.0 | 3.4 |
| Luminous intensity | If=20mA | Iv | R 600 | | 800 | mcd |
| G 400 | | 600 |
| Viewing angle at 50% lv | If=10mA | 2θ1/2 | | 60 | | Deg |
| Resverse current | Vr=5v | Ir | | | 5 | mA |
